Online 600-601 free questions and answers of New Version:
NEW QUESTION 1
Why is SSH preferred over Telnet as a method of accessing a network device to alter or view the configuration?
- A. Telnet encrypts only the login information, not the entire transmission.
- B. SSH requires fewer network resources and no additional configuration.
- C. Telnet is more difficult to use and configure than SSH.
- D. SSH encrypts the login and session information.
Answer: D
NEW QUESTION 2
Which option best describes a mechanical, ingress, climatic, chemical and electromagnetic environment that is classified as M3 I3 C3 E3?
- A. the highest quality
- B. office environment
- C. severe
- D. serviced by multiple cable segments
Answer: C
NEW QUESTION 3

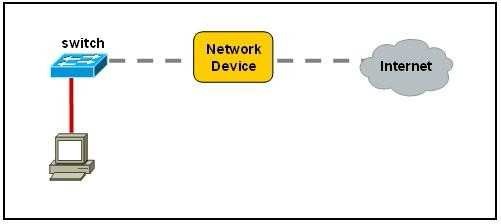

Exhibit:
Refer to the exhibit. An industrial ruggedized network device needs to be installed in the place of the icon labeled Network Device to accommodate a leased line attachment to the Internet. Which network device and interface configuration meets the minimum requirements for this installation?
- A. a router with two Ethernet interfaces
- B. a switch with two Ethernet interfaces
- C. a router with one Ethernet and one serial interface
- D. a switch with one Ethernet and one serial interface
- E. a router with one Ethernet and one modem interface
Answer: C
NEW QUESTION 4
For which three issues should fiber-optic network segments be tested? (Choose three.)
- A. attenuation
- B. near-end crosstalk
- C. length
- D. polarity
- E. jitter
- F. tensile stress
Answer: ACD
NEW QUESTION 5
At which Layer would you use trace route to validate the path?
- A. Layer 1
- B. Layer 2
- C. Layer 3
- D. Layer 4
Answer: C
NEW QUESTION 6
In which two ways could you minimize the impact of monitoring an industrial network? (Choose two.)
- A. Send random messages to a device and see what the response is.
- B. Do frequent ping sweeps to industrial devices to check for their proper operations.
- C. Make a copy of all the network traffic and analyze it offline.
- D. Use an industrial-network-grade IDS-IPS system.
Answer: CD
NEW QUESTION 7
You are a called upon to troubleshoot connectivity problems to a network device on a production floor. You have used ping and traceroute to verify that you cannot connect to the device from the management network. The network is 209.165.202.128/27 and the device has been given the IP address 209.165.202.158 and mask 255.255.255.224. You have verified that you can reach the device with your computer connected to the same switch as the device. What could be the cause of this problem?
- A. The device is set to the wrong subnet mask.
- B. The device is set to the wrong IP address.
- C. The device has no IP default gateway.
- D. The device is connected to a switchport in the wrong VLAN.
Answer: C
NEW QUESTION 8
With a Cisco IE 2000 switch, what does a power status LED indicate when it is solid green?
- A. Power is present on the associated circuit and the system is operating normally.
- B. Power is present on the associated circuit, but there is no correlation to whether the system is operating normally.
- C. The system is operating normally, but power is not necessarily present on the associated circuit.
- D. Power is not present on the associated circuit and the power supply alarm is configured.
- E. The power status LED does not show solid green.
Answer: A
NEW QUESTION 9
What two things does a router do when it forwards a packet? (Choose two.)
- A. switches the packet to the appropriate outgoing interfaces
- B. computes the destination host address
- C. determines the next hop on the path
- D. updates the destination IP address
- E. forwards ARP requests
Answer: AC
NEW QUESTION 10
With a Cisco IE 2000 switch, what does a port status LED indicate when it is solid green?
- A. The port is sending or receiving data.
- B. A link is present.
- C. No link is present.
- D. There is a link fault.
- E. The port is not forwarding.
Answer: B
NEW QUESTION 11
Which three pieces of information must be maintained for all stakeholders as part of the change management process? (Choose three.)
- A. the location of the person who applied the change
- B. the date and time that the change was applied and on which device
- C. the original change request form that indicates why the change is necessary
- D. the size of the change (in bytes)
- E. a description of the actual change itself (configuration, program code, and so on)
- F. the names of the current members of the change advisory board
- G. the industrial protocol that is used
Answer: BCE
NEW QUESTION 12
Which three of the following components must be elected before the Spanning Tree Protocol can converge in a switched LAN? (Choose three.)
- A. designated ports
- B. duplex operating mode
- C. fast mode ports
- D. root bridge
- E. root ports
- F. BDPU priority
Answer: ADE
NEW QUESTION 13

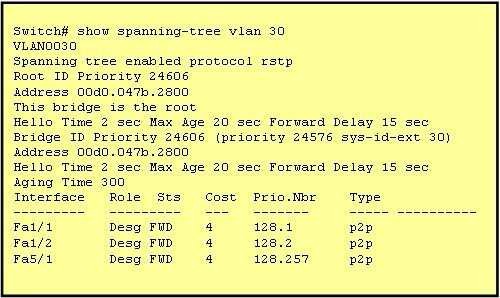

Exhibit:
Refer to the exhibit. The output that is shown is generated at an industrial switch. Which three statements are true? (Choose three.)
- A. All ports will be in a state of discarding, learning, or forwarding.
- B. Thirty VLANs have been configured on this switch.
- C. The bridge priority is lower than the default value for spanning tree.
- D. All interfaces that are shown are on shared media.
- E. All designated ports are in a forwarding state.
- F. This switch must be the root bridge for all VLANs on this switch.
Answer: ACE
NEW QUESTION 14
Exhibit:
Which two statements are correct for a safe wiring installation to the terminal block of the switch or endpoint? (Choose two.)
- A. Insert a green ground wire into the terminal block that is marked RT for return.
- B. Verify that DC power is live and within 24 VDC voltage range before starting wiring.
- C. Verify that the DC power circuit includes an overcurrent protective device that limits the DC current to 5 A.
- D. Because this is a low-voltage DC circuit, anyone can install this wiring without electrical training or qualifications.
- E. Connect the positive 24 VDC conductor to the V terminal and connect the negative 24 VDC return wire to the RT terminal.
- F. A ground wire can optionally be connected to the screw terminal on the front of the switch.
Answer: CE
NEW QUESTION 15
Given a ring topology, which loop prevention mechanism provides the fastest reconvergence time after a link failure?
- A. Rapid Per-VLAN Spanning Tree Protocol
- B. Resilient Ethernet Protocol
- C. Multiple Spanning Tree Protocol
- D. Spanning Tree Protocol
Answer: B
NEW QUESTION 16
An administrator has connected devices to an industrial switch and, for security reasons, wants the dynamically learned MAC addresses from the address table added to the running configuration. What must be done to accomplish this?
- A. Enable port security and use the keyword sticky.
- B. Set the switchport mode to trunk and save the running configuration.
- C. Use the switchport protected command to have the MAC addresses added to the configuration.
- D. Use the no switchport port-security command to allow MAC addresses to be added to the configuration.
Answer: A
NEW QUESTION 17
DRAG DROP
- A. Mastered
- B. Not Mastered
Answer: A
Explanation:
NEW QUESTION 18
With a Cisco IE 2000 switch, what does a port status LED indicate when it is solid amber?
- A. The port is sending or receiving data.
- B. A link is present.
- C. No link is present.
- D. There is a link fault.
- E. The port is not forwarding.
Answer: E
NEW QUESTION 19
What is the purpose of Spanning Tree Protocol?
- A. to prevent routing loops
- B. to create a default route
- C. to provide multiple gateways for hosts
- D. to maintain a loop-free Layer 2 network topology
- E. to enhance the functions of SNMP
Answer: D
NEW QUESTION 20
EtherNet/IP is an Ethernet implementation of which protocol?
- A. CIP
- B. Industrial Protocol
- C. DeviceNet
- D. ControlNet
Answer: A
NEW QUESTION 21
Which two pieces of information are commonly tracked as part of a change management process? (Choose two.)
- A. reason for the change
- B. names of people involved in the change
- C. return on investment related to the change
- D. SWOT analysis related to the change
- E. scatter diagrams related to the change
Answer: AB
NEW QUESTION 22
Which two commands can help you to determine what image is running on your industrial switch? (Choose two.)
- A. show version
- B. show spanning-tree
- C. show interface-switch
- D. show interfaces gigabitEthernet x/y switchport
- E. show license
Answer: AE
