NEW QUESTION 1
A network administrator needs to configure firewall rules for three roles:
Finance
Sales
Employee
Several rules apply to both the Employee and Sales roles, but not to the Finance role. What is the simplest way to configure these rules?

• A. Define the Employee and Sales roles as internal roles, and then configure the rules as global rules for internal users.
• B. Apply these rules as a subnet-based policy, and then ensure that only Employee and Sales users are assigned IP addresses in that subnet.
• C. Select either the Employee or Sales role, and then configure these rules within the global policy.
• D. Create a policy with these rules, and then apply that policy to the Employee and Sales roles.

Answer: D

NEW QUESTION 2
Which IEEE standard provides the highest transmission rates in the 2.4GHz frequency band?

• A. 802.11a
• B. 802.11ac
• C. 802.11g
• D. 802.11n

Answer: D

NEW QUESTION 3
An Aruba Remote AP (RAP) operates in split-tunnel mode. How does the AP forward traffic?

• A. It sends all user traffic in a GRE tunnel to a central Mobility Controller (MC), and it sends control traffic in an IPsec tunnel to the controller.
• B. It sends traffic designed to the corporate network in an IPsec tunnel to a central Mobility Controller (MC), and it bridges other traffic locally.
• C. It sends user and control traffic in two separate IPsec tunnels to the Mobility Controller (MC).
• D. It sends all employee and control traffic in a GRE tunnel to a central Mobility Controller (MC), and it bridges all guest traffic locally.

Answer: B

NEW QUESTION 4
What is the minimum space between channels in the 2.4GHz range to prevent overlap?

• A. 1 channel
• B. 3 channels
• C. 5 channels
• D. 7 channels

Answer: C

NEW QUESTION 5
A network manager wants to implement an Aruba wireless solution that accommodates 802.1X with EAP-TLS. All wireless users will utilize Active Directory (AD) accounts to authenticate.
Which device will the authenticator forward the authentication requests to in this type of solution?

• A. APs
• B. RADIUS server
• C. Mobility Controller (MC)
• D. Mobility Master (MM)

Answer: B

NEW QUESTION 6
A network administrator examines a list of 2.4GHz clients with low performance in the Mobility Master (MM) dashboard. Which property for a client should pose a concern as a potential performance issue?

• A. Radio PHY of HT 20MHz
• B. Max speed of 72Mbps
• C. SNR of 18
• D. Usage of 10 MB

Answer: C

NEW QUESTION 7
What does an Aruba Mobility Master (MM) do before it deploys a configuration to a Mobility Controller (MC)?

• A. It encrypts the configuration to be deployed and backs it up to a secure archive.
• B. It obtains the current configuration, encrypts it, and backs it up to a secure archive.
• C. It synchronizes the configuration with templates on Aruba AirWave.
• D. It removes any commands that are not supported on that MC or have dependency errors.

Answer: D

NEW QUESTION 8

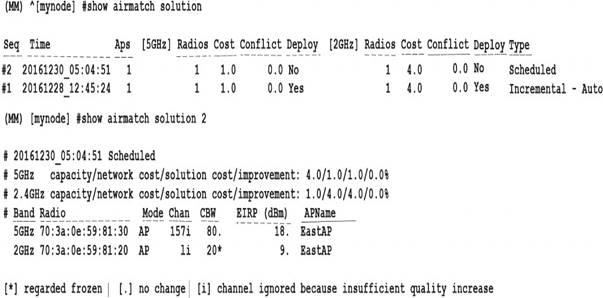

Refer to the exhibit.

An Aruba solution uses AirMatch with the default AirMatch profile settings. A network administrator sees that a scheduled optimization was completed, but a plan was not deployed.
Based on the exhibit, why did this occur?

• A. The cost of the new plan exceeds the amount allowed by the feature license
• B. The new plan did not offer significantly improved quality
• C. The solution uses master-local mode
• D. ARM is disabled in the radio profile, so AP radios are considered frozen

Answer: B

NEW QUESTION 9
A network administrator creates the role employees and adds the rule to it: user any any permit
The first several wireless clients assigned to the employees role are assigned IP addresses in the 10.10.10.0/24 subnet. Several other wireless clients with the employees role are then assigned IP addresses in the 10.10.20.0/24.
When the Aruba firewall matches traffic from these clients to the user any any permit rule, what does it do?

• A. It drops traffic from wireless clients in both the 10.10.0/24 subnet and 10.10.20.0/24 subnet.
• B. It permits traffic from wireless clients in both the 10.10.10.0/24 and 10.10.20.0/24 subnet as long as the packet has a source IP.
• C. It permits the traffic from wireless clients in the 10.10.20.0/24 subnet, but drops the traffic from wireless clients in the 10.10.10.0/24 subnet.
• D. It permits the traffic from wireless clients in the 10.10.0/24 subnet, but drops the traffic from wireless clients in the 10.10.20.0/24 subnet.

Answer: B

NEW QUESTION 10
What is required for a WLAN that uses WPA2-Enterprise security?

• A. a Web server to host a login portal
• B. a shared password to secure access to the WLAN
• C. RADIUS server or servers
• D. a policy to allow unauthenticated users to receive RADIUS

Answer: C

NEW QUESTION 11

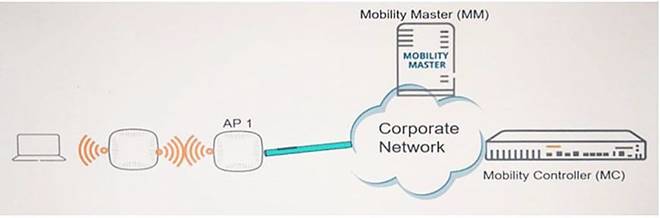

Refer to the exhibit.

Which role must AP 1 play?

• A. Remote AP (RAP)
• B. Mesh Portal AP
• C. Instant AP (IAP)
• D. Mesh Point AP

Answer: B

NEW QUESTION 12

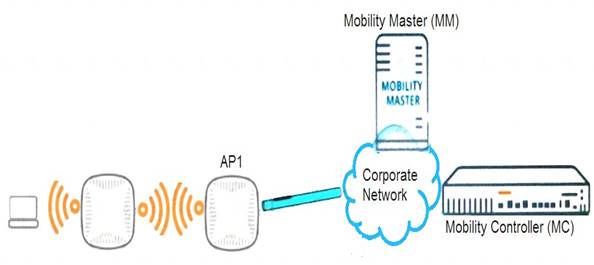

Refer to the exhibit.

Which role must AP1 play?

• A. Instant AP (IAP)
• B. Mesh Point AP
• C. Mesh Portal AP
• D. Remote AP (RAP)

Answer: C

NEW QUESTION 13

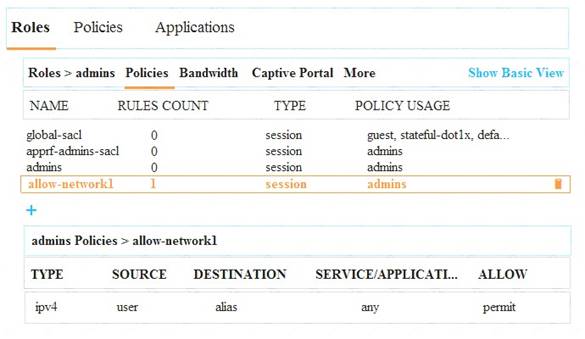

Refer to the exhibit.

The alias in the rule shown in the exhibit is network 10.1.1.0/24.
A wireless client is assigned IP address 10.1.2.10/24 and the “admins” role. The wireless client at 10.1.2.10 attempts to initiate a Web session with a server at 10.1.1.2. A wired client at 10.1.1.3 attempts to initiate an SSH session with the wireless client at 10.1.2.10.
How does the Aruba firewall handle these attempts?

• A. The firewall drops the traffic from the wireless clien
• B. The firewall drops the traffic from the wired client.
• C. The firewall permits the traffic from the wireless client, but drops the return traffic from the serve
• D. The firewall drops the traffic from the wireless client.
• E. The firewall permits the traffic from the wireless client and also permits the return traffic from the serve
• F. The firewall permits the traffic from the wired client and also permits the return traffic from the wireless client.
• G. The firewall permits the traffic from the wireless client and also permits the return traffic from the serve
• H. The firewall drops the traffic from the wired client.

Answer: C

NEW QUESTION 14
Which IEEE standard provides the highest transmission rates in the 5.0GHz frequency band?

• A. 802.11a
• B. 802.11ac
• C. 802.11g
• D. 802.11n

Answer: D

NEW QUESTION 15
A customer has a large campus that requires 400 Aruba 335 APs to support a total of 10,000 wireless users and 12Gbps of traffic. Although the customer wants two controllers for redundancy, each controller must be able to support all of the APs and users on its own.
Which Aruba Mobility Controller models meet the customer requirements and DO NOT unnecessarily exceed them?

• A. Aruba 7024 controllers
• B. Aruba 7210 controllers
• C. Aruba 7240 controllers
• D. Aruba 7030 controllers

Answer: B

NEW QUESTION 16
A company has a single Aruba Mobility Master (MM)-based solution with two Mobility Controllers (MCs). Network administrators want APs in building 1 to support a WLAN but do not want APs in building 2 to support the WLAN.
How can administrator ensure that they can enforce this rule as they set up the WLAN in the Mobility Master (MM) Interface?

• A. Place APs in different buildings in different AP Groups.
• B. Assign APs in different buildings to different MM nodes.
• C. Configure APs in different buildings to use different frequency bands.
• D. Assign different radio profiles to APs in different buildings.

Answer: A

NEW QUESTION 17
Which settings can a Mobility Master (MM) deploy to Mobility Controllers (MCs) but master controllers CANNOT deploy to local controllers?

• A. radio profiles
• B. WLAN settings
• C. Interface settings
• D. AAA profiles

Answer: C

NEW QUESTION 18
What are two criteria that distinguish different Aruba Mobility Controller (MC) models from each other?

• A. firewall speed and ability to act as a standalone controller or not
• B. number of supported users and firewall throughput
• C. number of supported APs and ability to support 802.11ac APs or not
• D. number of supported users and ability to support 802.11ac APs or not

Answer: B

NEW QUESTION 19
A company wants to provide wireless access for guests with their Aruba solution. Which configuration feature requires the customer to purchase PEFNG licenses?

• A. redirection of guests to an external captive portal
• B. provision of DHCP services to unauthenticated guests
• C. addition of custom rules to control access for authenticated guests
• D. customization of the internal captive portal login page

Answer: C

NEW QUESTION 20
A company has an Aruba Mobility Master (MM)-based solution. Where can network administrators look to monitor the health status of all controllers, APs, and clients?

• A. the top banner
• B. the MM Maintenance pages
• C. the Performance dashboard
• D. the Potential Issues dashboard

Answer: A

NEW QUESTION 21
A company has a Mobility Master (MM)-based solution with an employee WLAN Several users report that they can connect to the WLAN, but they cannot access all of the resources that they should.
Where should the network administrator look in the MM interface to find the roles to which these users are actually assigned?

• A. Configuration > Policies & Roles
• B. Dashboard > Security
• C. Dashboard >Clients
• D. Configuration >WlANs > Profiles > AAA Profile

Answer: A

NEW QUESTION 22
A network administrator reduces an AP radio transmit power from 18 dBm to 15 dBm. This is a loss of 3 dBms.
What is the current power as a percentage of the original power?

• A. 10%
• B. 33%
• C. 50%
• D. 83%

Answer: C
