NEW QUESTION 1
Which two authentication types does Cisco UCS Manager support when configuring authentication? (Choose two.)

• A. PAM
• B. local
• C. 802.1X
• D. Kerberos
• E. LDAP

Answer: BE

NEW QUESTION 2
Which method must a network engineer use to upgrade the BIOS firmware or a Cisco UCS standalone C-Series rack- mount server?

• A. Use the U-ACPI Interface.
• B. Use the Cisco host upgrade utility.
• C. Use the Cisco hardware upgrade utility.
• D. Use the Cisco host firmware policy.

Answer: B

NEW QUESTION 3
Which action must be performed before renumbering a Cisco UCS chassis?

• A. Run the shut and no shut command on the connected ports.
• B. Move the chassis to new ports on fabric interconnect.
• C. Decommission the chassis.
• D. Re-acknowledge the chassis.

Answer: C

NEW QUESTION 4

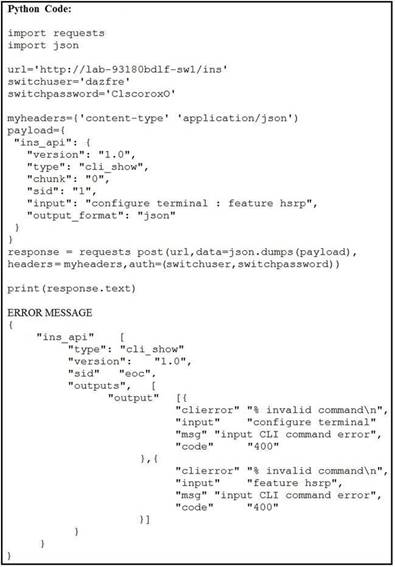

Refer to the exhibit.

Why does the Python code for Cisco NX-API print an error message?

• A. The JSON is not a supported format for the NX-API.
• B. The "type" is wrong in the header of the request and should be "cli_conf"
• C. NX-API does not allow configuration for features via the requests module.
• D. The "type" is wrong in the body of the request and should be "cli_conf"

Answer: C

NEW QUESTION 5
A small remote office is set to connect to the regional hub site via NSSA ASBR.
Which type of LSA is sent to the remote office OSPF area?

• A. type 7 LSA
• B. type 1 LSA
• C. type 5 LSA
• D. type 3 LSA

Answer: A

NEW QUESTION 6

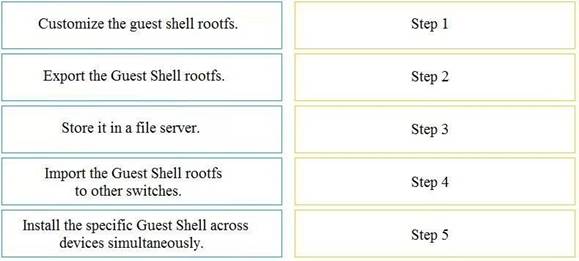

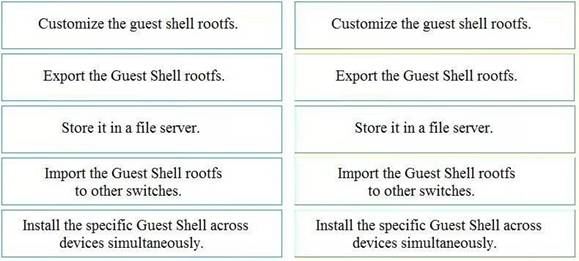

DRAG DROP
An engineer deploys a custom guest shell rootfs onto multiple switches. Drag and drop the steps from the left into the correct order on the right. Export the Guest Shell rootfs.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 7
An engineer is asked to manage a large-scale data center and collect information from multiple Cisco NX-OS devices using Cisco NX-OS Data Management Engine model.
Which technology should be used to accomplish this goal?

• A. NETCONF
• B. NX Yang
• C. NX-API REST
• D. JSON-RPC

Answer: C

NEW QUESTION 8
What happens to the default host firmware policy after a Cisco UCS Manager upgrade?

• A. It is assigned to all the service profiles that include a host firmware policy.
• B. It is replaced by a new default policy without any firmware entries.
• C. It is set to match the host firmware policy.
• D. It is updated to contain the firmware entries of all the components.

Answer: A

NEW QUESTION 9
An engineer is duplicating an existing Cisco UCS setup at a new site.
What are two characteristics of a logical configuration backup of a Cisco UCS Manager database? (Choose two.)

• A. contains the configured organizations and locales
• B. contains the VLAN and VSAN configurations
• C. contains the AAA and RBAC configurations
• D. contains all of the configurations
• E. contains a file with an extension tgz that stores all of the configurations

Answer: BC

NEW QUESTION 10
Which two hypervisors does Cisco HyperFlex support? (Choose two.)

• A. OpenStack
• B. Citrix XenServer
• C. VMware vSphere
• D. RedHat KVM
• E. Microsoft Hyper-V

Answer: CE

NEW QUESTION 11

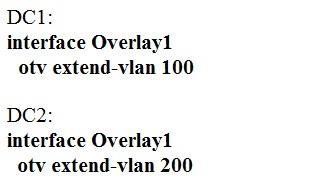

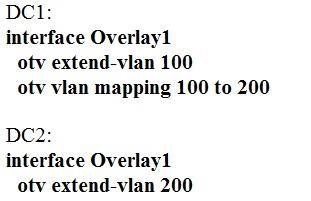

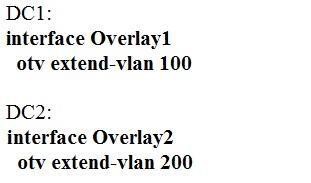

Host1 is in VLAN100 located in DataCenter1 and Host2 is in VLAN200 located in DataCenter2.
Which OTV VLAN mapping configuration allows Layer 2 connectivity between these two hosts?

• A.
• B.
• C.
• D.

Answer: A

NEW QUESTION 12
An engineer wants to create a backup of Cisco UCS Manager for disaster recovery purposes.
What are two characteristics of a full state backup of a Cisco UCS Manager database? (Choose two.)

• A. contains all of the runtime states and statuses but not the configurations
• B. performs a complete binary dump of the database as a .bin file
• C. performs a complete binary dump of the database as a .sql file
• D. performs a complete binary dump of the database as a .txz file
• E. contains all of the configurations

Answer: BE

NEW QUESTION 13

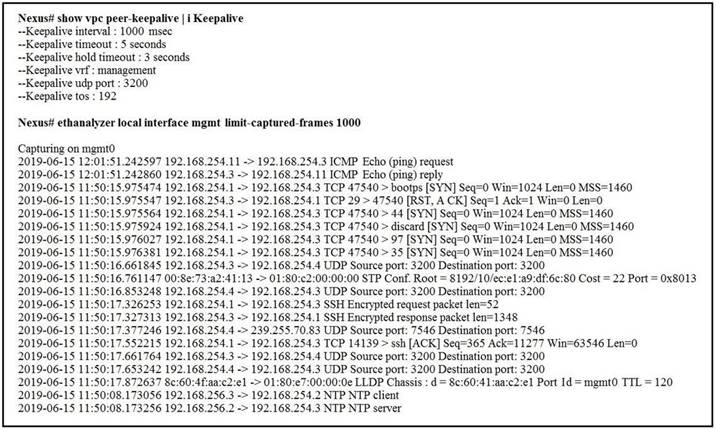

Refer to the exhibit.

A flapping link issue has been reported on the vPC keepalive link. A packet capture has been activated on the Cisco Nexus switch. What is the destination IP address of the vPC keepalive packets that are sent by the switch?

• A. 192.168.254.4
• B. 192.168.254.1
• C. 192.168.254.2
• D. 239.255.70.83

Answer: A

NEW QUESTION 14
Refer to the exhibit.

What is a characteristic presented in the service profile of the UUID?

• A. unique system generated
• B. allocated from a UUID pool
• C. vendor assigned
• D. based on the hardware

Answer: B

NEW QUESTION 15
Refer to the exhibit.

What is the outcome of this command when the EPLD is updated on a Cisco Nexus 9000 Series Switch?

• A. displays the compatibility of the EPLD upgrade and the image in the bootflash
• B. shows a simulated upgrade of the EPLD
• C. upgrades the EPLD on the switch disruptively
• D. displays the impact of the upgrade on the operation of the switch

Answer: A

NEW QUESTION 16
A host in EPG Client wants to talk to a webserver in EPG Web. A contract with default settings is defined between EPG Client and EPG Web, which allows TCP communication initiated by the client toward the webserver with TCP destination port 80.
Which statement is true?

• A. If EPG Web is made a preferred group member, a contract between EPG Client and EPG Web is no longer required for the host in EPG Client to reach the webserver in EPG Web.
• B. If vzAny is configured to consume and provide a "deny all" contract, traffic between EPG Client and EPG Web is no longer allowed.
• C. The host in EPG Client can connect to TCP destination port 80 on the webserver in EPG We
• D. The webserver will not be able to initiate a separate TCP connection to a host port with TCP source port 80.
• E. The host in EPG Client can connect to TCP destination port 80 on the webserver in EPG We
• F. The webserver can initiate a separate TCP connection to a host port with TCP source port 80.

Answer: D

NEW QUESTION 17
Which two statements about the process of performing an EPLD upgrade on a Cisco MDS 9000 Series Switch are true? (Choose two.)

• A. The upgrade can be performed from the standby supervisor module.
• B. The upgrade process disrupts only the module that is being upgraded.
• C. The active supervisor can be upgraded.
• D. If an upgrade is interrupted, the upgrade continues after a connection is restored.
• E. Modules must be online to be upgraded.

Answer: AB

NEW QUESTION 18
A customer has a requirement to deploy a cloud service and needs to have full control over the underlying OS, data and applications.
Which cloud model meets this requirement?

• A. MaaS
• B. PaaS
• C. SaaS
• D. IaaS

Answer: D

NEW QUESTION 19
An engineer changed a configuration and must perform a rollback.
Which statement applies to a Cisco Nexus 5600 Series Switch?

• A. The configuration rollback functionality is disabled when FCoE is enabled.
• B. A system checkpoint is generated automatically when the running configuration is saved to NVRAM.
• C. A user who is assigned to the network-operator user role can perform a rollback.
• D. Errors are skipped when an atomic rollback type is triggered.

Answer: A

NEW QUESTION 20
An engineer is implementing NPV mode on a Cisco MDS 9000 Series Switch.
Which action must be taken?

• A. NPIV must be enabled on the upstream switch.
• B. The FCNS database must be disabled in the fabric.
• C. A port channel must be configured to the upstream switch.
• D. All switches in the fabric must be Cisco MDS switches.

Answer: A

NEW QUESTION 21
An engineer is enabling port security on a Cisco MDS 9000 Series Switch.
Which feature of enabling port security on a Cisco MDS 9000 Series Switch must be considered?

• A. It can be distributed by using Cisco Fabric Services.
• B. It authorizes only the configured sWWN to participate in the fabric.
• C. It always learns about switches that are logging in.
• D. It binds the fabric at the switch level.

Answer: A

NEW QUESTION 22
Which two statements about modifying Cisco UCS user accounts are true? (Choose two.)

• A. Disabling a user account maintains all of the data in the Cisco UCS Fabric Interconnect.
• B. The admin account can be used to log on by using SSH only.
• C. The password of the user account must contain a minimum of 10 characters.
• D. Local user accounts override the same account on a remote authentication server, such as TACACS, RADIUS, or LDAP.
• E. The password of the user account expires in 30 days.

Answer: AD
