Proper study guides for Replace Cisco Implementing Cisco Application Centric Infrastructure (DCACI) certified begins with Cisco 300-620 preparation products which designed to deliver the Precise 300-620 questions by making you pass the 300-620 test at your first time. Try the free 300-620 demo right now.

Free demo questions for Cisco 300-620 Exam Dumps Below:

NEW QUESTION 1

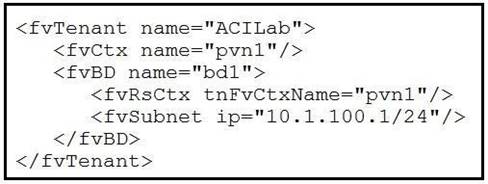

Refer to the exhibit.
300-620 dumps exhibit
Which two objects are created as a result of the configuration? (Choose two.)

  • A. application profile
  • B. attachable AEP
  • C. bridge domain
  • D. endpoint group
  • E. VRF

Answer: CE

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/rest_cfg/2_1_x/b_Cisco_APIC_REST_API_Configuration_Guide/b_Cisco_APIC_REST_API_Configuration_Guide_chapter_01110.html

NEW QUESTION 2
When configuring Cisco ACI VMM domain integration with VMware vCenter, which object is created in vCenter?

  • A. datacenter
  • B. VMware vSphere Standard vSwitch
  • C. VMware vSphere Distributed Switch
  • D. cluster

Answer: C

NEW QUESTION 3
Which type of profile needs to be created to deploy an access port policy group?

  • A. attachable entity
  • B. Pod
  • C. module
  • D. leaf interface

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/Operating_ACI/guide/b_Cisco_Operating_ACI/b_Cisco_Operating_ACI_chapter_0110.html

NEW QUESTION 4
How is an EPG extended outside of the ACI fabric?

  • A. Create an external bridged network that is assigned to a leaf port.
  • B. Create an external routed network that is assigned to an EPG.
  • C. Enable unicast routing within an EPG.
  • D. Statically assign a VLAN ID to a leaf port in an EPG.

Answer: D

Explanation:
Reference: https://www.dclessons.com/l2-external-network-with-aci

NEW QUESTION 5

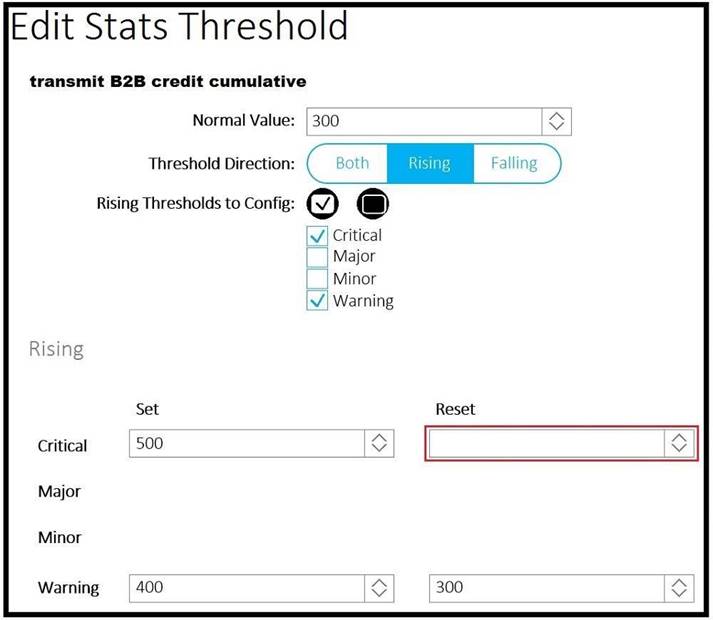

Refer to the exhibit.
300-620 dumps exhibit
A client reports that the ACI domain connectivity to the fiber channel storage is experiencing a B2B credit oversubscription. The environment has a SYSLOG server for state collection messages. Which value should be chosen to clear the critical fault?

  • A. 300
  • B. 410
  • C. 350
  • D. 510

Answer: B

NEW QUESTION 6
What must be configured to allow SNMP traffic on the APIC controller?

  • A. out-of-band management interface
  • B. contract under tenant mgmt
  • C. SNMP relay policy
  • D. out-of-band bridge domain

Answer: B

NEW QUESTION 7
Which statement regarding ACI Multi-Pod and TEP pool is true?

  • A. The IP addresses used in the IPN network can overlap TEP pool of the APIC.
  • B. A different TEP pool must be assigned to each Pod.
  • C. The Pod1 TEP pool must be split and a portion of the TEP pool allocated to each Pod.
  • D. The same TEP pool is used in all Pods.

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/white-paper-c11-739714.html

NEW QUESTION 8
Which feature allows firewall ACLs to be configured automatically when new endpoints are attached to an EPG?

  • A. ARP gleaning
  • B. dynamic endpoint attach
  • C. hardware proxy
  • D. network-stitching

Answer: B

NEW QUESTION 9
What represents the unique identifier of an ACI object?

  • A. universal resource identifier (URI)
  • B. application programming interface
  • C. management information tree
  • D. distinguished name

Answer: D

Explanation:
Reference: https://www.slideshare.net/CiscoDevNet/introduction-to-aci-apis

NEW QUESTION 10
Which new construct must a user create when configuring in-band management?

  • A. VLAN pool
  • B. management contract
  • C. management tenant
  • D. bridge domain

Answer: D

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/kb/b_KB_Configuring_Static_Management_Access.html

NEW QUESTION 11
Which protocol does ACI use to securely sane the configuration in a remote location?

  • A. SCP
  • B. HTTPS
  • C. TFTP
  • D. FTP

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/kb/b_KB_Using_Import_Export_to_Recover_Config_States.html

NEW QUESTION 12
Which tenant is used when configuring in-band management IP addresses for Cisco APICs, leaf nodes, and spine nodes?

  • A. default
  • B. infra
  • C. common
  • D. mgmt

Answer: D

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/kb/b_KB_Configuring_Static_Management_Access.html#concept_CFF63FEBE947424291B0F10E6F23DA7D

NEW QUESTION 13
What does a bridge domain represent?

  • A. Layer 3 cloud
  • B. Layer 2 forwarding construct
  • C. tenant
  • D. physical domain

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/L2_config/b_Cisco_APIC_Layer_2_Configuration_Guide/b_Cisco_APIC_Layer_2_Configuration_Guide_chapter_010.html

NEW QUESTION 14
What must be enabled in the bridge domain to have the endpoint table learn the IP addresses of endpoints?

  • A. L2 unknown unicast: flood
  • B. GARP based detection
  • C. unicast routing
  • D. subnet scope

Answer: C

Explanation:
Reference: https://hsvglobalschool.in/dhkycw/cisco-aci-bridge-domain.html

NEW QUESTION 15
An engineer configured a bridge domain with the hardware-proxy option for Layer 2 unknown unicast traffic. Which statement is true about this configuration?

  • A. The leaf switch drops the Layer 2 unknown unicast packet if it is unable to find the MAC address in the local forwarding tables.
  • B. The Layer 2 unknown hardware proxy lacks support of the topology change notification.
  • C. The leaf switch forwards the Layers 2 unknown unicast packets to all other leaf switches if it is unable to find the MAC address in its local forwarding tables.
  • D. The spine switch drops the Layer 2 unknown unicast packet if it is unable to find the MAC address in the proxy database.

Answer: A

NEW QUESTION 16
Which statement about ACI syslog is true?

  • A. Notifications for different scopes of syslog objects can be sent only to one destination.
  • B. Syslog messages are sent to the destination through the spine.
  • C. All syslog messages are sent to the destination through APIC.
  • D. Switches send syslog messages directly to the destinations.

Answer: A

Explanation:
Reference: https://www.ciscolive.com/c/dam/r/ciscolive/us/docs/2021/pdf/BRKACI-2303.pdf

NEW QUESTION 17
Which endpoint learning operation is completed on the egress leaf switch when traffic is received from an L3Out?

  • A. The source MAC and IP address of the traffic is learned as a local endpoint.
  • B. The source MAC address of the traffic is learned as a remote endpoint.
  • C. No source MAC or IP address of the traffic is learned as a remote endpoint.
  • D. The source IP address of the traffic is learned as a remote endpoint.

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/white-paper-c11-739989.html

NEW QUESTION 18
In the context of ACI Multi-Site, when is the information of an endpoint (MAC/IP) that belongs to site 1 advertised to site 2 using the EVPN control plane?

  • A. Endpoint information is not exchanged across sites unless COOP protocol is used.
  • B. Endpoint information is not exchanged across sites unless a policy is configured to allow communication across sites.
  • C. Endpoint information is exchanged across sites as soon as the endpoint is discovered in one site.
  • D. Endpoint information is exchanged across sites when the endpoints are discovered in both sites.

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/white-paper-c11-739609.html#CiscoACIMultiSiteoverlaydataplane

NEW QUESTION 19
Which two actions extend a Layer 2 domain beyond the ACI fabric? (Choose two.)

  • A. extending the routed domain out of the ACI fabric
  • B. creating a single homed Layer 3 Out
  • C. creating an external physical network
  • D. extending the bridge domain out of the ACI fabric
  • E. extending the EPG out of the ACI fabric

Answer: AE

NEW QUESTION 20
Which type of port is used for in-band management within ACI fabric?

  • A. spine switch port
  • B. APIC console port
  • C. leaf access port
  • D. management port

Answer: C

NEW QUESTION 21

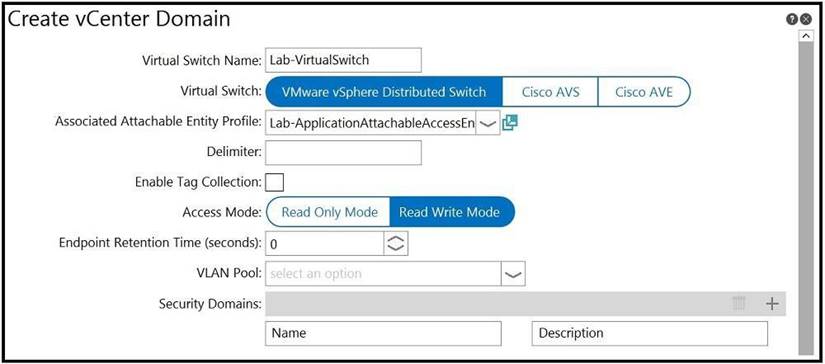

Refer to the exhibit.
300-620 dumps exhibit
An engineer is integrating a VMware vCenter with Cisco ACI VMM domain configuration. ACI creates port-group names with the format of “Tenant | Application | EPG”. Which configuration option is used to generate port groups with names formatted as “Tenant=Application=EPG”?

  • A. enable tag collection
  • B. security domains
  • C. delimiter
  • D. virtual switch name

Answer: D
