NEW QUESTION 1
A network solution is being designed for a company that connects to multiple Internet service providers. Which Cisco proprietary BGP path attribute will influence outbound traffic flow?
- A. Local Preference
- B. MED
- C. Weight
- D. AS Path
- E. Community
Answer: C
NEW QUESTION 2
In an SD-WAN architecture, which methods are used to bootstrap a vEdge router?
- A. DHCP options or manual configuration
- B. vManage or DNS records
- C. ZTP or manual configuration
- D. DNS records or DHCP options
Answer: C
NEW QUESTION 3
What are two valid scaling techniques when an EIGRP network is designed that consists of more than 1000 routers? (Choose two.)
- A. Use structured hierarchical topology with route summarization
- B. Used sub-second timers
- C. Use the distribute-list command to filter routes
- D. Modify delay parameters on the links
- E. Implement multiple EIGRP autonomous systems
Answer: AE
NEW QUESTION 4

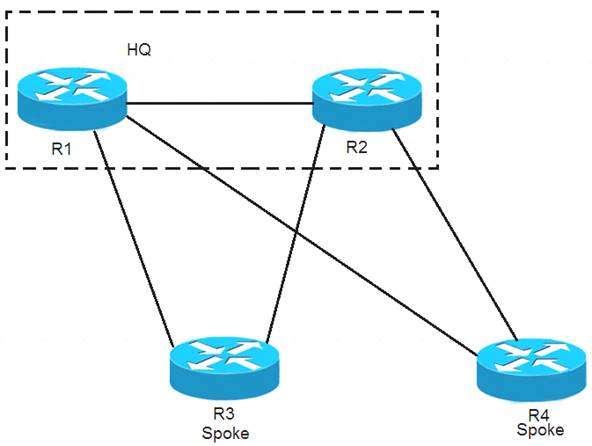

Refer to the exhibit.
EIGRP has been configured on all links. The spoke nodes have been configured as EIGRP stubs, and the WAN links to R3 have higher bandwidth and lower delay than the links to R4. When a
link failure occurs at the R1-R2 link, what happens to traffic on R1 that is destined for a subnet attached to R2?
- A. R1 has no route to R2 and drops the traffic
- B. R1 load-balances across the paths through R3 and R4 to reach R2
- C. R1 forwards the traffic to R3, but R3 drops the traffic
- D. R1 forwards the traffic to R3 in order to reach R2
Answer: D
NEW QUESTION 5
A branch office has a primary L3VPN MPLS connection back to the main office and an IPSEC VPN tunnel that serves as backup. Which design ensures that data is sent over the backup connection only if the primary MPLS circuit is down?
- A. Use EIGRP to establish a neighbor relationship with the main office via L3VPN MPLS and the IPSECVPN tunnel.
- B. Use BGP with the multipath feature enabled to force traffic via the primary path when available.
- C. Use static routes tied to an IP SLA to prefer the primary path while a floating static route points to the backup connection.
- D. Use OSPF with a passive-interface command on the backup connection.
Answer: C
NEW QUESTION 6
Which OSPF area blocks LSA Type 3, 4 and 5, but allows a default summary route?
- A. normal
- B. stub
- C. NSSA
- D. totally stubby
Answer: D
NEW QUESTION 7
An engineer is designing an enterprise campus network. The LAN infrastructure consists of switches from multiple vendors, and Spanning Tree must be used as a Layer 2 loop prevention mechanism. All configured VLANs must be grouped in two SIP instances. Which standards-based Spanning Tree technology supports this design solution?
- A. MSTP
- B. RSTP
- C. Rapid PVST
- D. STP
Answer: A
NEW QUESTION 8
Which method will filter routes between EIGRP neighbors within the same autonomous system?
- A. distribute-list
- B. policy-based routing
- C. leak-map
- D. route tagging
Answer: A
NEW QUESTION 9

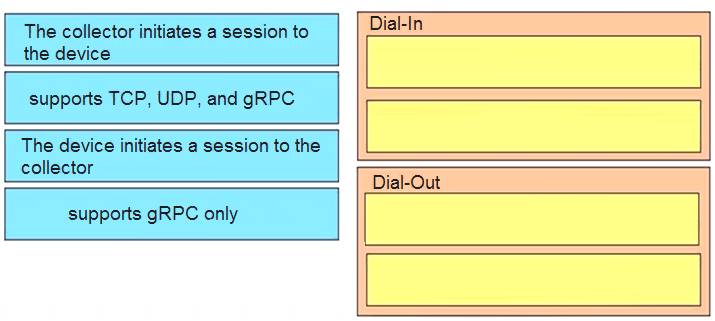

Drag and drop the characteristics from the left onto the correct telemetry mode on the right.
- A. Mastered
- B. Not Mastered
Answer: A
Explanation:
In a dial-in mode, the destination initiates a session to the router and subscribes to data to be streamed. Dialin mode is supported over gRPC in only 64-bit platforms
In a dial-out mode, the router initiates a session to the destinations based on the subscription. All 64-bit IOS XR platforms (except for NCS 6000 series routers) support gRPC and TCP protocols. All 32-bit IOS XR platforms support only TCP.
NEW QUESTION 10
A company with multiple service providers wants to speed up BGP convergence time in the event a failure occurs with their primary link. Which approach achieves this goal and does not impact router CPU utilization?
- A. Utilize BFD and tune the multiplier to 50
- B. Lower the BGP hello interval
- C. Decrease the BGP keepalive timer
- D. Utilize BFD and keep the default BGP timers
Answer: C
NEW QUESTION 11
An engineer is working for a large cable TV provider that requires multiple sources streaming video on different channels using multicast with no rendezvous point. Which multicast protocol meets these requirements?
- A. PIM-SM
- B. PIM-SSM
- C. any-source multicast
- D. BIDIR-PIM
Answer: D
NEW QUESTION 12
What is the purpose of an edge node in an SD-Access network fabric?
- A. Edge nodes identify and authenticate endpoints and register endpoint information with control plane nodes.
- B. Edge nodes track endpoint IDs to location mappings, along with IPv4, IPv6, or MAC addresses.
- C. Edge nodes are the gateway between the fabric domain and network outside of the fabric.
- D. Edge nodes resolve lookup requests from edge and border nodes to locate destination endpoint IDs.
Answer: A
NEW QUESTION 13
A customer with an IPv4 only network topology wants to enable IPv6 connectivity while preserving the IPv4 topology services. The customer plans to migrate IPv4 services to the IPv6 topology, then decommission the IPv4 topology. Which topology supports these requirements?
- A. dual stack
- B. 6VPE
- C. 6to4
- D. NAT64
Answer: A
NEW QUESTION 14
When designing interdomain multicast, which two protocols are deployed to achieve communication between multicast sources and receivers? (Choose two.)
- A. IGMPv2
- B. BIDIR-PIM
- C. MP-BGP
- D. MSDP
- E. MLD
Answer: CD
NEW QUESTION 15

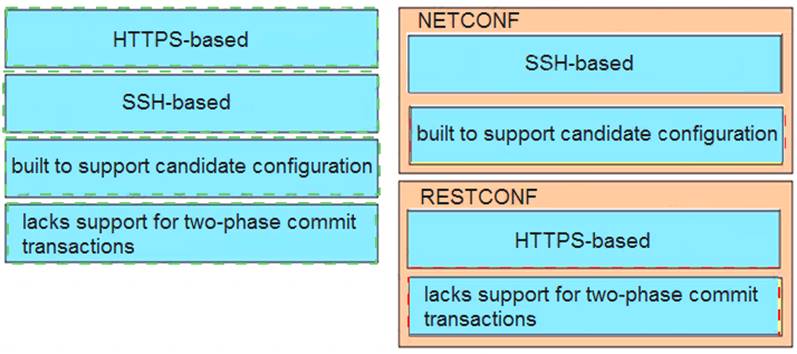

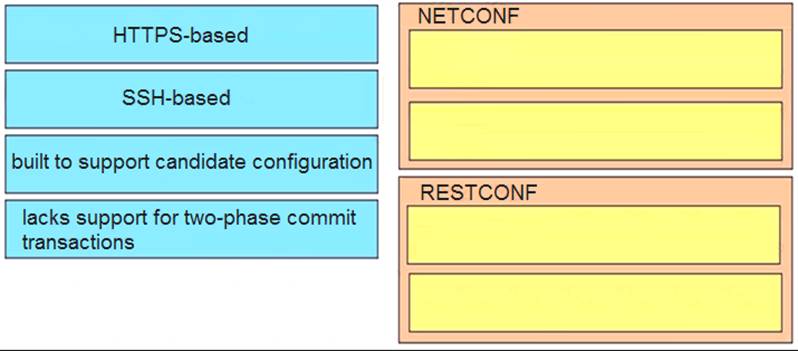

Drag and drop the properties from the left onto the protocols they describe on the right.
- A. Mastered
- B. Not Mastered
Answer: A
Explanation:
NEW QUESTION 16

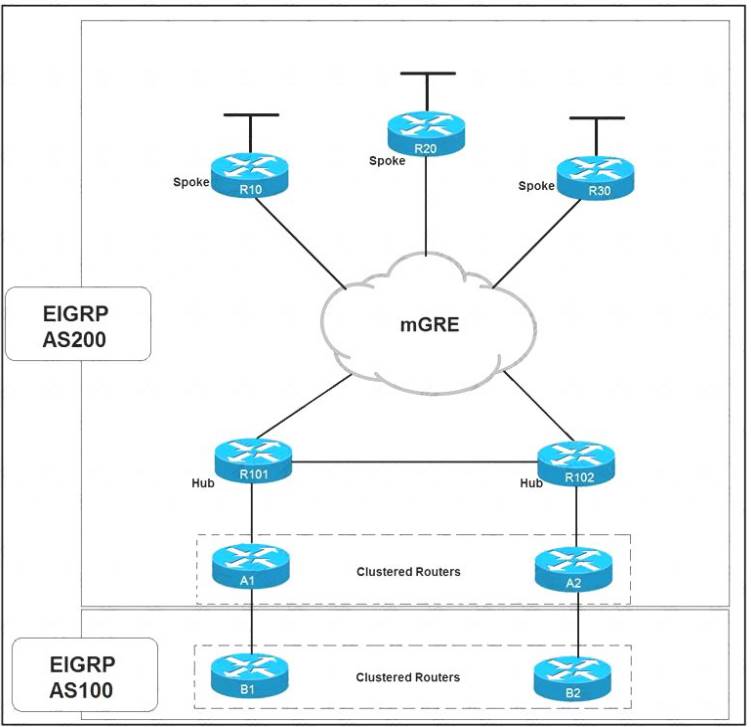

Refer to the exhibit.
Which solution decreases the EIGRP convergence time?
- A. Enable subsecond timers
- B. Increase the hold time value
- C. Increase the dead timer value
- D. Enable stub routing on the spokes
Answer: D
NEW QUESTION 17
An engineer must propose a QoS architecture model that allows an application to inform the network of its traffic profile and to request a particular type of service to support its bandwidth and delay requirements. The application requires consistent and dedicated bandwidth end to end. Which QoS architecture model meets these requirements?
- A. DiffServ
- B. LLQ
- C. WRED
- D. IntServ
Answer: D
NEW QUESTION 18
Which routes does the overlay management protocol advertise in an SD-WAN overlay?
- A. underlay, MPLS, and overlay
- B. primary, backup, and load-balanced
- C. prefix, TLOC, and service
- D. Internet, MPLS, and backup
Answer: C
NEW QUESTION 19
A customer is discussing QoS requirements with a network consultant. The customer has specified that endto- end path verification is a requirement. Which QoS solution meets this requirement?
- A. IntServ model with RSVP to support the traffic flows
- B. DiffServ model with PHB to support the traffic flows
- C. marking traffic at the access layer with DSCP to support the traffic flows
- D. marking traffic at the access layer with CoS to support the traffic flows
Answer: A
NEW QUESTION 20
What is a benefit of using VRRPv3 as compared to VRRPv2?
- A. VRRPv3 supports IPv4 and IPv6
- B. VRRPv3 supports authentication
- C. VRRPv3 supports preemption
- D. VRRPv3 supports stateful switchover
Answer: A
NEW QUESTION 21

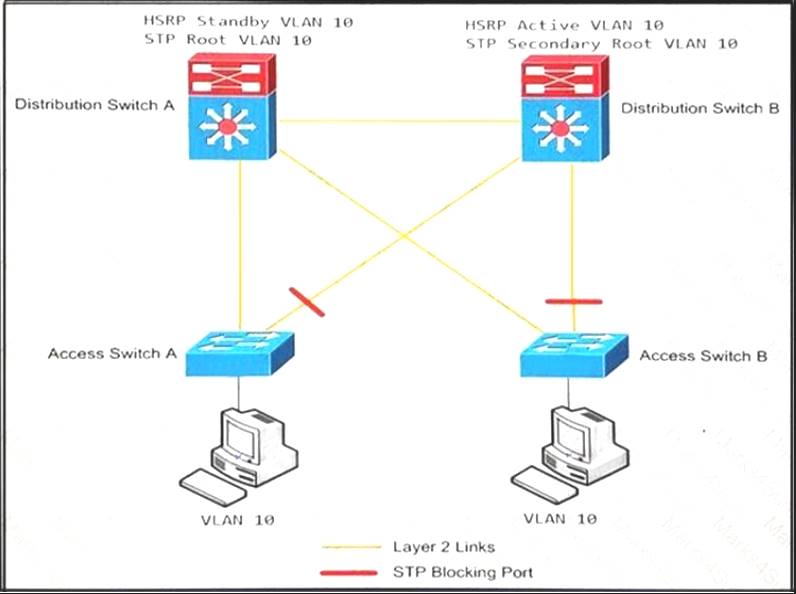

Refer to the exhibit.
An engineer must optimize the traffic flow of the network. Which change provides a more efficient design between the access and the distribution layer?
- A. Add a link between access switch A and access switch B
- B. Reconfigure the distribution switch A to become the HSRP Active
- C. Change the link between distribution switch A and distribution switch B to be a routed link
- D. Create an EtherChannel link between distribution switch A and distribution switch B
Answer: B
