NEW QUESTION 1
Refer to the exhibit.
Which links can be combined in the same link aggregation?
- A. Links 3 and 4
- B. Links 3 and 5
- C. Links 3 and 6
- D. Links 4 and 6
Answer: A
Explanation:
We can also aggregate link 5 and 6
NEW QUESTION 2
Refer to the exhibit.
Exhibit 1.
Exhibit 2.
The administrator enters the show spanning-tree instance 2 command on Switch-3 and sees the output shown in Exhibit 2.
What could explain the output results?
- A. Switch-1 has a lower MAC address than Switch-2.
- B. Switch-1 has a higher MAC address than Switch-2.
- C. Switch-3 filters BPDUs on port 26.
- D. Switch-3 has incompatible MSTP region settings with other switches.
Answer: D
NEW QUESTION 3

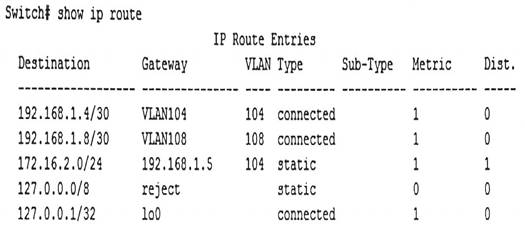

Refer to the exhibit.
The network administrator enters this command:
Switch(config)# ip route 172.16.2.0/30 192.168.1.100 metric 1 distance 1 Why does this route fail to appear in the IP routing table?
- A. Its prefix length is invalid.
- B. Its next hop is unreachable.
- C. Its administrative distance is the same as an existing static route.
- D. Its metric is the same as an existing static route.
Answer: B
NEW QUESTION 4
Refer to the exhibit.
The student A client needs to connect to FTP Server B. Student A sends the necessary ARP request and receives a reply.
Which destination MAC address does the Student A client use in the FTP packet to FTP Server B?
- A. 00-1D-B3-F1-EF-40
- B. 00-E0-52-F0-44-87
- C. 00-1D-B3-F1-EF-31
- D. 00-E0-52-F0-41-B2
Answer: A
NEW QUESTION 5
Which security benefit does SNMPv3 offer that SNMPv2 does not offer?
- A. SSL encryption
- B. Scopes
- C. Data integrity
- D. RADIUS groups
Answer: C
NEW QUESTION 6
Which technology enables a network administrator to group users by logical function instead of physical location, reduce bandwidth waste by limiting broadcast traffic, and improve security by isolating users at Layer2?
- A. 802.1X
- B. SNMPv3
- C. VLANs
- D. Virtual Switching Framework (VSF)
Answer: D
NEW QUESTION 7
How does a switch treat a link aggregation?
- A. The switch treats the link aggregation as one logical link for spanning tree, but it learns MAC addresses separately on each individual interface within the aggregation.
- B. The switch treats the link aggregation as one logical lin
- C. It assigns one spanning tree port role to the link aggregation, and it learns MAC addresses on the aggregation.
- D. The switch treats the link aggregation as one logical link for MAC learning, but it assigns an individual spanning tree port role to each interface within the aggregation.
- E. The switch treats each interface within the interface as a separate entity for MAC address learning; it also assigns an individual spanning tree port role to each interface.
Answer: B
NEW QUESTION 8
How can a network administrator configure an ArubaOS switch to automatically assign the correct tagged VLANs to a port when an Aruba AP connects to that port?
- A. Configure the tagged VLANs in the device profile and apply that profile to the port.
- B. Configure a MAC-to-VLAN mapping policy and enable MAC-based VLANs on the port.
- C. Enable Zero Touch Provisioning (ZTP) on the switch.
- D. Enable LLDP MED globally and on the switch port.
Answer: A
NEW QUESTION 9
What is a requirement for links to successfully participate in an aggregated link?
- A. that links have the spanning tree protocol disabled
- B. that links use the same speed and duplex mode
- C. that links use the same media type and are untagged
- D. that links are untagged and are associated to the same VLAN
Answer: B
NEW QUESTION 10
Refer to the exhibit.
The link between Core-1 and Core-2 shown in the exhibit fails, and some users lose connectivity. What should the network administrator do to prevent this issue in a situation such as this?
- A. Configure BPDU protection on all Core-2 ports.
- B. Enable IP routing on Core-2.
- C. Create routes to 10.1.10.0/24 and 10.1.11.0/24 through 10.1.1.3 on Core-2.
- D. Extend VLANs 10 and 11 on all switch-to-switch links.
Answer: D
NEW QUESTION 11

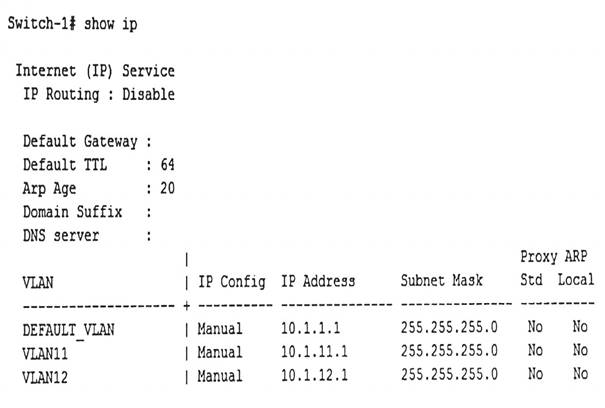

Refer to the exhibit.
What should the network administrator do to permit Switch-1 to route traffic from a client in 10.1.11.0/24 to a client in 10.1.12.0/24?
- A. Enable proxy ARP.
- B. Enable IP routing.
- C. Configure a static route to 10.1.11.0/24 and a static route to 10.1.12.0/24.
- D. Enable OSPF routing on VLAN 11 and on VLAN 12 in the same area.
Answer: B
NEW QUESTION 12
What does the traceroute command that is entered on an ArubaOS switch identify?
- A. each physical device between the switch and a destination
- B. the path to each router connected to the switch
- C. each Layer 3 device between the switch and a destination
- D. debug output tracing entries to the routing table
Answer: C
NEW QUESTION 13
An ArubaOS switch operates at its factory default settings. A network administrator connects the switch to a VLAN with a DHCP server. The switch-to-switch connection carries untagged traffic. The administrator wants to use Telnet log in to the switch CLI.
How should the administrator contact the switch and log in?
- A. Contact the switch at its default IP address 172.16.0.254/24 and log in without entering a password.
- B. Contact the switch at its default IP address 192.168.1.1/24 and log in with the default password admin.
- C. Contact the switch at its DHCP-assigned IP address and log in without entering a password.
- D. Contact the switch at its DHCP-assigned IP address and log in with the default password aruba.
Answer: B
NEW QUESTION 14
A network administrator wants to see the VLANs supported on one ArubaOS switch interface and if those VLANs have tagged or untagged assignments. What should the administrator do to find this information?
- A. View the MAC forwarding table for the interface and VLAN with the show mac-address command.
- B. Use the detail option with the show vlans port command.
- C. Use the local-device option with the show lldp info command.
- D. View the interface with the show interface command.
Answer: B
NEW QUESTION 15
A company has an Aruba 5400R switch, switch 1, at the network core of its campus. This switch routes all traffic for the campus and is the RSTP root. The company now wants to add another Aruba 5400R switch to the core in order to enhance resiliency. The company wants to use the option that provides the best Layer 2 and Layer 3 resiliency and also the simplest setup.
What should the administrator do to add the new 5400R switch?
- A. Add the new switch and migrate to MSTP with two instances.
- B. Add the new switch and set up OSPF on all switches.
- C. Add the new switch as a secondary root bridge in RSTP.
- D. Add the new switch as a standby member in a VSF fabric with switch 1.
Answer: C
NEW QUESTION 16
A network administrator wants to see how much power an Aruba AP has dynamically requested from an ArubaOS switch port. Which information should the administrator look at?
- A. LLDP with the use of the show lldp info remote-device command
- B. interface with the use of the show interface command
- C. device class with the use of show system power-supply command
- D. device profile with the use of the show device-profile status command
Answer: A
NEW QUESTION 17
Refer to the exhibit.
Based on the output shown in this exhibit, which statement is true about the 10.0.0.2 neighbor?
- A. The neighbor rejects communications because it already has its maximum number of neighbors.
- B. The neighbor has mismatched settings and cannot exchange information with this switch.
- C. The neighbor communicates with this switch, but it cannot hold any more routes in its database.
- D. The neighbor communicates with this switch, and they have exchanged all topology information.
Answer: D
NEW QUESTION 18
Member1 is the commander of a Virtual Switching Framework (VSF) fabric. A power distribution causes member 1 to go down. Now the network administrator wants to rejoin member1 to the VSF fabric and make member1 the commander again.
What should the administrator do?
- A. Boot member1 and allow it to rejoin to the VSF fabri
- B. Then reboot member2.
- C. Boot member1 and allow it to rejoin the VSF fabric.
- D. Disconnect member1 from member2 before booting member1.
- E. Configure member2 with VSF priority0. Then boot member1 and allow it to rejoin the VSF fabric.
Answer: D
NEW QUESTION 19
Refer to the exhibit.
Based on the topology shown in the exhibit, which symptom does a network administrator see if the ArubaOS switches are in their factory default states?
- A. Ports places in a blocking state
- B. Mislearned MAC addresses
- C. TTL expired in transit
- D. Layer 3 loop
Answer: D
NEW QUESTION 20
A network administrator has copied new software to an ArubaOS switch and placed this software in the secondary ash location. The switch is currently booting from the primary location. The administrator wants the switch to start using the new software.
What should the administrator do to accomplish this?
- A. Reboot the switch, which automatically causes the switch to use the newer software.
- B. Execute the command to boot the system from the secondary flash.
- C. Rename the secondary software as the primary software.
- D. Copy the secondary software to the primary software slot.
Answer: B
NEW QUESTION 21
Refer to the exhibit.
Based on the exhibit, what is the problem?
- A. An issue causes the spanning tree to converge and re-converge again and again.
- B. Interface 25 on Switch-1 is incorrectly configured as an STP edge port and causes a loop to occur.
- C. Interface 25 on Switch-1 does not support the correct VLANs and prevents the interface from receiving the correct STP role.
- D. Switch-1 and another switch are configured with the same spanning tree priority and cause the root election to occur again and again.
Answer: A
NEW QUESTION 22
Refer to the exhibit.
Originally, all four switches had the same region configuration. VLAN 14 was added to Switch_D and then mapped to instance 2.
How does this affect the MSTP topology?
- A. Load sharing is lost, one of the uplinks is blocked for all traffic on Switch_C and Switch_D.
- B. Load sharing is lost, one of the uplinks is blocked for all traffic on Switch_D
- C. All connectivity is lost, both uplinks are blocked on Switch_D.
- D. A Layer 2 loop exists and will cause sporadic connectivity issues.
Answer: B
NEW QUESTION 23

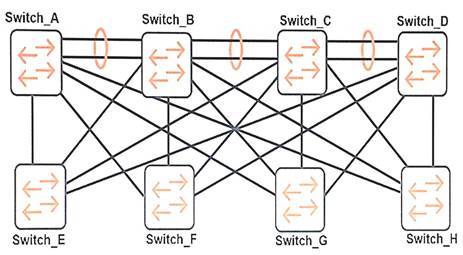

Refer to the exhibit.
MSTP is implemented in the topology shown in the exhibit, and all the switches are in the same region. The network administrator does not want to use the Internal Spanning Tree (IST) or instance 0 for production traffic.
How many non-IST spanning tree instances does this network need in order to have effective load sharing on the uplinks from the access switches?
- A. two
- B. three
- C. four
- D. five
Answer: C
NEW QUESTION 24
A network administrator needs to configure a static route. What should the administrator use as the next hop address?
- A. the lowest IP address on the neighboring router in the path towards its destination
- B. the IP address on the local interface that is used to egress traffic towards its destination
- C. the IP address of the default gateway in the destination subnet
- D. the IP address on the connected interface of a neighboring router in the path towards its destination
Answer: D
NEW QUESTION 25
Refer to the exhibit.
The network administrator enters this command: Switch# reload
Which software and configuration file will load?
- A. software version KA.16.01 and config3
- B. software version KA.15.15 and config2
- C. software version KA.15.15 and config3
- D. software version KA.16.01 and config1
Answer: B
