NEW QUESTION 1
An engineer enters the show svs neighbors command as shown below. Which statement describes the output of the command?

• A. The VSM cannot connect to the VEM.
• B. The vCenter server cannot connect to the VSM.
• C. The VSM is connected to the VEM by using an Layer 2 network.
• D. The VSM is connected to the VEM by using an Layer 3 network.

Answer: B

NEW QUESTION 2

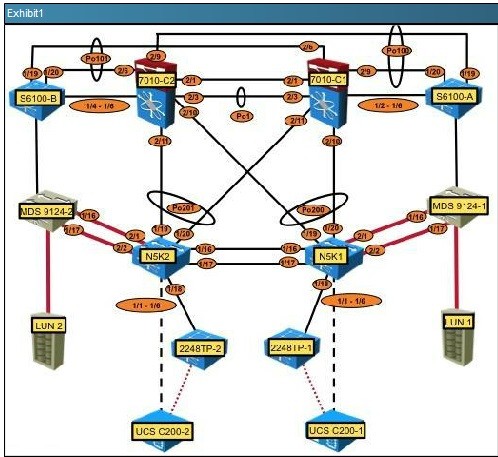

Which statement is true regarding the port channel 100 and 101 configurations between the Nexus 7010 switches?

• A. The vPC assignments on N7010-C2 are incorrectly swapped
• B. N7010-C1 is not allowing any active VLAN traffic to pass on Po100 and Po101.
• C. LACP is not configured to initiate negotiations.
• D. The vPC peer-keepalive is down between the two Nexus 7000 switches.

Answer: A

Explanation:
The vPC assignments on N7010-C2 are incorrectly swapped.
The “show vpc” command will show you that the keepalives are active, and that there are active VLANs. The “show port-channel summary” command shows that LACP is enabled.

NEW QUESTION 3

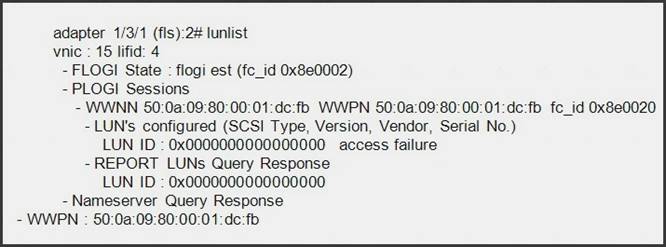

Refer to the exhibit.

What does this adapter output indicate?

• A. The target of the configured zone does not match the target of the configured boot order.
• B. The port types between the target and initiator are incorrectly configured.
• C. The target device configuration is not allowing the initiator to access the LUN.
• D. The configured initiator LUN ID does not match the configured target LUN ID.

Answer: C

NEW QUESTION 4
Which two effects of enabling the persistent FC ID feature are true? (Choose two.)

• A. N Ports receive the same FC IDs when they disconnect from and reconnect to any port on the same switch.
• B. The tcdomain automatically adds entries to the FC ID database when a device connects to a port.
• C. The volatile cache stores up to 4.O00 entries containing the WWN to FC ID bindin
• D. New entries overwrite the oldest entries in the cache if the cache is full.
• E. The contents of the volatile cache are discarded when a server reboots.
• F. The FC IDs used in the fcdomain are saved after you reboot the switch.

Answer: AC

NEW QUESTION 5
When troubleshooting VXLAN, which interface is the source of all the encapsulated packets?

• A. VTEP loopback
• B. SVl
• C. VLAN
• D. vPC

Answer: A

NEW QUESTION 6
You plan to troubleshoot EPG communication by using atomic counters. What do you consider before using the atomic counters?

• A. Atomic counters only property in a transit, non-full-mesh topology,
• B. Atomic counters count the traffic for the endpoints that are located in different VRFs.
• C. Atomic counters do not count the traffic between EPGs that reside in different VRFs.
• D. Atomic counters also count spine proxy traffic

Answer: C

NEW QUESTION 7
Which solution can be applied if there is communication between hosts in different VLANs over Cisco OTV and the hosts are losing connectivity?

• A. Configure an EFM script to clear MAC CAM tables on all deuces every 25 minutes.
• B. Increase the Cisco OTV CAM timers to match the ARP timer on any non-Nexus switches.
• C. Move hosts so that they belong to the same VLAN,
• D. Configure me ARP timers of any non-Nexus switches to be less than the Cisco OTV CAM timer.

Answer: D

NEW QUESTION 8
Refer to the exhibit.

You have fabric interconnects. You discover that all traffic flows through a fabric interconnect named fabric-interconnect B.
Which of the following could cause the issue?

• A. An administrator evacuated fabric-interconnect A.
• B. There is a version mismatch between the fabric interconnects.
• C. An administrator assigned an invalid OOBP IP address to fabric-interconnect B.
• D. the fabric interconnects have duplicate IP address.

Answer: A

NEW QUESTION 9
There is an ARP storm in VDC 1. Some users on VDC 2 notice that ARP is not resolving for their gateway on the Cisco Nexus core. What is the cause?

• A. The ARP CoPP class committed information rate is exceeded, resulting in ARP loss in all VDCs.
• B. The administrator has not correctly configured the ARP CoPP class in VDC 2.
• C. The ARP traffic in VDC 1 is copied to the host ports in VDC 2, causing overutilization and output discards.
• D. Because the ARP process in the default VDC (VDC 1) is responsible for processing ARP traffic for all VDCs, VDC 2 will be affected.

Answer: A

NEW QUESTION 10
A customer has a Cisco UCS Center cluster. The customer configures LDAP as the AAA protocol and enables SSL for LDAP. The LDAP authentication fails. Which issue is the cause of the failure?

• A. The LDAP client passed an incorrect from the trustpoint.
• B. The CA certificate is missing from the trustpoints.
• C. The LDAP server limit that is set by an administrative authority was exceeded.
• D. The LDAP time limit that is specified by either the client or the server was exceeded.

Answer: D

NEW QUESTION 11
Which command output shows the interface assigned as the designated receiver of each VLAN?

• A. show system vlan reserved
• B. show vlan internal bd-info bd-to-vlan all-bd
• C. show port internal info all
• D. show platform software enm internal info vlandb all

Answer: D

NEW QUESTION 12
What happens to Copp after you perform an ISSSU?

• A. The default Copp policy is applied.
• B. packets that need special handling by the supervisor module cannot be matched.
• C. The statistical counters are reset.
• D. All traffic is put into the default class of the Copp policy

Answer: C

NEW QUESTION 13
You have a Cisco APIC environment. An administrator configures the administrator roles for managing a service configuration You discover that some tenants can import device clusters but cannot use the device clusters What should you do to ensure that the tenants can use the device clusters?

• A. Change the ready-only access permission for the tenants to read-write.
• B. grant the tenants the nw-svc-device privilege.
• C. Grant the tenant the nw-svc-devshared privilege.
• D. Grant the tenant the nw-svc-policy privilege.

Answer: D

NEW QUESTION 14

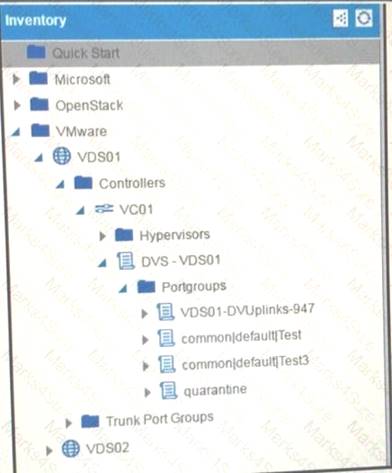

Refer to the exhibit.

You have an EPG named SQL_SERVERS that must be assigned to virtual machines. The SQL_SERVERS EPG fails to appear as a port group on the VMware vSphere web client Other EPGs appear as port groups on the vSphere web client Which action do you take to resolve the issue?

• A. Associate the SQL_SERVERS EPG to the VDS01 VMM domain
• B. Create the SQL_SERVERS port group in the APIC GUI.
• C. Place the SQL_SERVERS EPG under quarantine untill it is first used.
• D. Create the SQL SERVERS port group on the vSphere web client.

Answer: B

NEW QUESTION 15
You discover that OSPF neighbors are stuck in Exstart and Exchange states.
What prevents the external routes from being propagated to the leaf switches to which endpoints are attached for a given tenant?

• A. The outside router is configured with an incorrect OSPF area ID.
• B. There is an MTU mismatch between the OSPF neighbors.
• C. The outside router is configured with an incorrect OSPF area type.
• D. The outside router is configured for MTU 9000.

Answer: B

NEW QUESTION 16

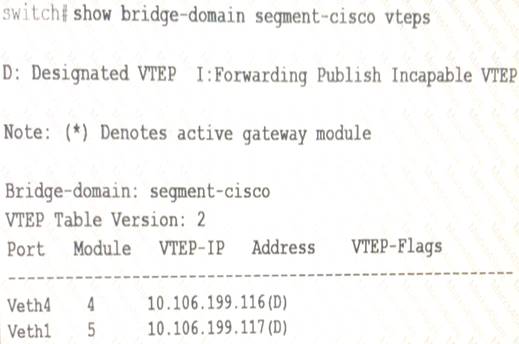

Refer to the exhibit.

Which description of the output is true?

• A. Two VTEPs are in the VEM.
• B. Two VTEP table versions exist.
• C. Two VTEPs are in the VSM.
• D. One designated VTEP is in the bridge domain.

Answer: C

NEW QUESTION 17

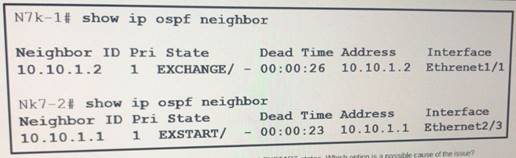

Refer to the exhibit. The two switches are stuck in the EXCHANGE and EXSTART states. Which option is a possible cause of the issue?

• A. The subnet mask is mismatched.
• B. The interfaces are not connected.
• C. The MTU is mismatched.
• D. The IP address of the OSPF process is incorrect.

Answer: C

NEW QUESTION 18

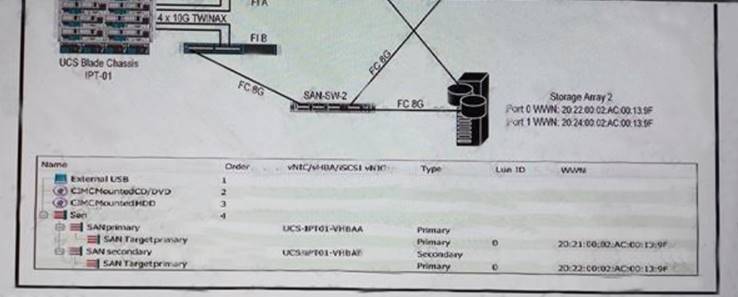

Refer to the exhibit.

SAN-SW-1has failed and must be replaced. Your client reports that all servers are booting from storage array 2 even through storage array 1 is up and reachable by Cisco UCS infrastructure. Which reason is the root cause of the boot anomaly?

• A. SAN target primary under SAN primary must be changed to SAN target secondary under SAN secondary.
• B. San target primary under San secondary must be changed to SAN target secondary under SAN secondary.
• C. SAN target primary under SAN secondary must be changed to SAN target secondary under SAN primary.
• D. SAN target secondary must be added to primary and SAN secondary.

Answer: D

NEW QUESTION 19
Which two of the following describe the correct requirements for non-disruptive ISSU on Cisco Nexus 7000 Series Switches? (Choose two.)

• A. updated kickstart and system images may be staged in bootflash on single-supervisor switches
• B. updated kickstart and system images may be staged in bootflash on dual-supervisor switches
• C. updated kickstart and system images may be staged remotely on single-supervisor switches
• D. dual supervisors
• E. clock synchronization

Answer: AD

NEW QUESTION 20
When you look at the HSRP state for devices on a VLAN that is extended by OTV, you see the following states: Active, Standby, and Listen. However, you intended each data center device to show the state as Active and Standby. What is the problem?

• A. HSRP is not configured correctly.
• B. A VACL is missing.
• C. A PACL is missing.
• D. This cannot be done.

Answer: A

NEW QUESTION 21
What is the default number of dynamic vNICs that is specified by the Cisco UCS Manager when creating a dynamic vNIC connection policy?

• A. 54
• B. 128
• C. 256
• D. 257

Answer: A

NEW QUESTION 22

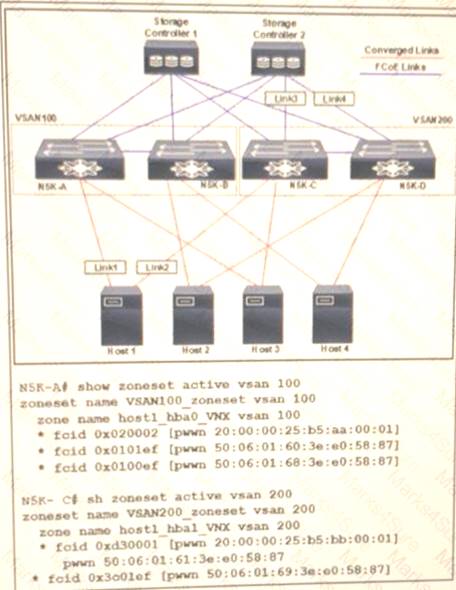

Refer to the exhibit. Which link is down?

• A. Link1
• B. Link2
• C. Link3
• D. Link4

Answer: B

NEW QUESTION 23
Refer to the exhibit.

An administrator is trying to configure a port channel on a Cisco Nexus 7000 Series Switch, which is connected to a Cisco Nexus 5500 Series Switch. The port channel will not come up, so the administrator executes the show port-channel summary command on the Cisco Nexus 7000 Series Switch and displays the output.
What are two causes of the error? (Choose two.)

• A. The Cisco Nexus 7000 Series Switch needs to be configured with no lacp suspend-individual.
• B. The Cisco Nexus 5500 Series Switch is configured with channel-group mode on.
• C. The LACP feature has not been enabled on the Cisco Nexus 7000 Series Switch.
• D. The ports are cabled to the wrong switch.
• E. The port channel load-balancing algorithm does not match.

Answer: BD

NEW QUESTION 24
How can you identify the blade location when tracing server traffic?

• A. by performing CDP checks on the Cisco UCS Fabric Interconnects
• B. by using a trace utility
• C. by collecting traffic that uses a SPAN monitoring port
• D. by examining the interface to which the server MAC address is connected

Answer: D

NEW QUESTION 25

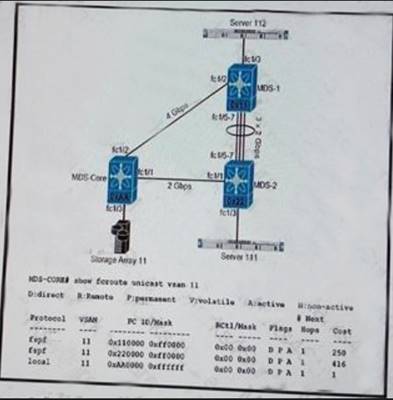

Refer to the exhibit.

Your customer reports that all storage traffic from storage array 11 to server 111 is taking the longest path, traveling from MDS-1 to MDS-2. You start troubleshooting the issue buy checking the Fibre Channel routing table. Which configuration set fixes the customer issues without affecting the storage array route of server 112?

• A. MDS-Core(config)# interface fc1/1MDS-Core(config-if)# fspf cost 90 vsan 11
• B. MDS-Core(config)# interface fc1/1 MDS-Core(Config-if)# cost 80 vsan 11
• C. MDS-Core(config)# interface fc 1/1MDS-Coe(config-if)# fspf cost 60 vsan 11
• D. MDS-Core(config)# interface fc1/1MDS-Core(config-if)# fspf cost 70 vsan 11

Answer: C

NEW QUESTION 26
Which tools can assist in the troubleshooting of FC-0 issues? (Choose three.)

• A. FC analyzer
• B. SPAN
• C. Device Manager
• D. show interface fc1/1 optical-power-budget
• E. PAA
• F. a portable protocol analyzer

Answer: ACF

NEW QUESTION 27
Refer to the exhibit.

Which action resolves the problem?

• A. Disabled NPIV on the switch.
• B. Enabled port mode on the link to the NPV switch.
• C. Configure the correct FC ID on the switch.
• D. Change the VSAN in which the port is located.

Answer: B

NEW QUESTION 28
Which statement is true about the show cfs merge status name command?

• A. In a successful merge, all switches in the fabric are shown separately.
• B. The command shows the complete Cisco Fabric Services region database.
• C. The merge master is selected based on the highest sWWN in the fabric.
• D. In a successful merge, all switches are shown in a local fabric.

Answer: D

NEW QUESTION 29
Which method does Cisco recommend for recovering a fabric interconnect when you have no working images on the bootflash?

• A. reboot the primary fabric interconnect.
• B. Receive the kickstart image by using TFTP.
• C. Download the system image.
• D. Initiate auto-install.

Answer: B

NEW QUESTION 30

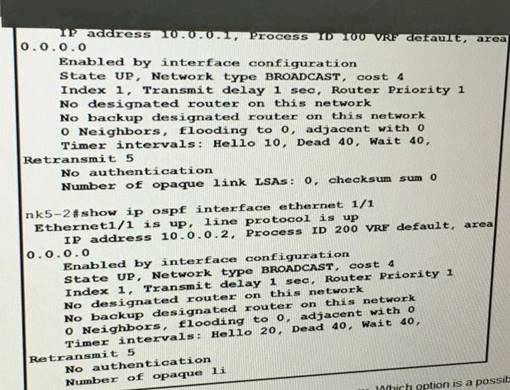

Refer to Exhibit.

The Cisco Nexus 5000 Series Switches fail to form an OSPF adjacency. Which option is a possible cause of the issue?

• A. The interfaces are disabled.
• B. The network type is set to broadcast
• C. There is mismatched process ID
• D. The OSPF hello timer values are mismatched.

Answer: D
